High-precision positioning for demanding industrial and scientific applications.

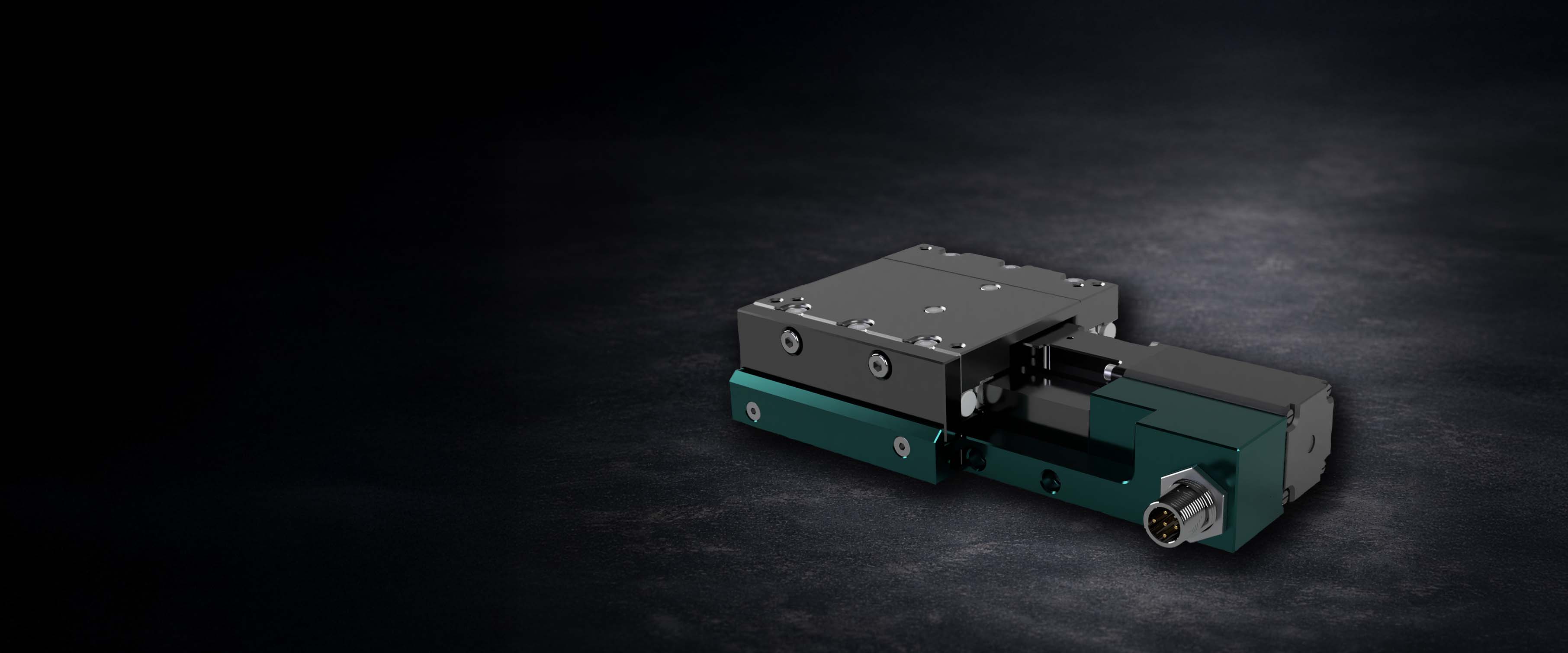

LAC-20-LIE
Compact precision stage for short travel applications
Travel range: 20 mm
Minimum incremental movement: 0.2 µm
Encoder: Incremental linear (standard), Absolute linear (option)
Resolution: 0.5 / 0.2 / 0.1 µm
Reference switch: Optical
Motor: Stepper brushless DC optional
LAC-104-LIE
Compact precision stage for medium travel applications
Travel range: 104 mm
Minimum incremental movement: 0.2 µm
Encoder: Incremental linear (standard), Absolute linear (option)
Resolution: 0.5 / 0.2 / 0.1 µm
Reference switch: Optical
Motor: Stepper, brushless DC optional

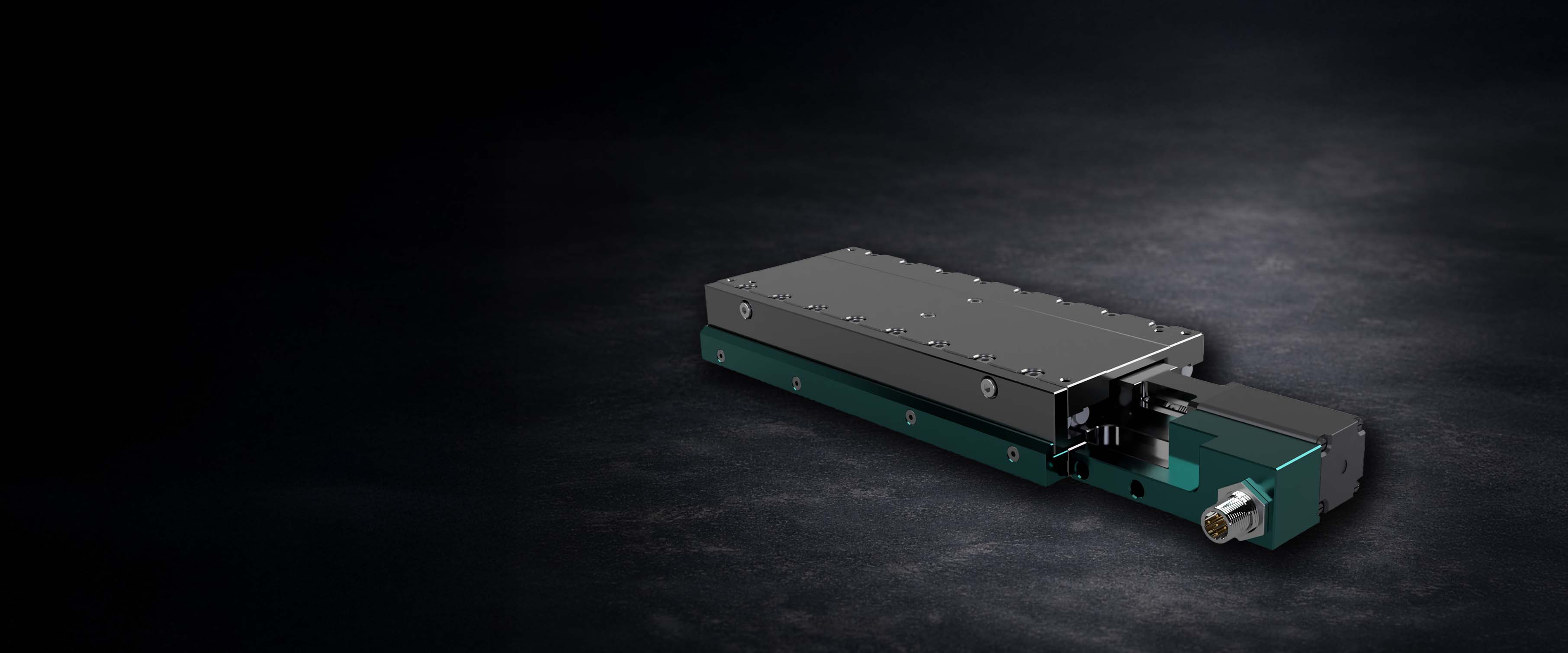

LAC-158-LIE
Precision stage for extended travel and higher load applications
Travel range: 158 mm
Minimum incremental movement: 0.2 µm
Encoder: Incremental linear (standard), Absolute linear (option)
Resolution: 0.5 / 0.2 / 0.1 µm
Reference switch: Optical
Motor: Stepper, brushless DC optional
CUSTOMIZABLE TRAVEL RANGE
RIGID AND RELIABLE CONSTRUCTION
EASY SYSTEM INTEGRATION

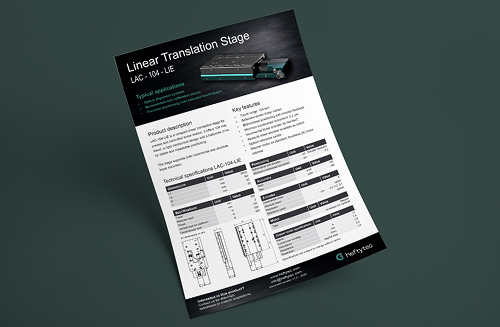

Download the full datasheets for detailed dimensions,
performance specifications and configuration options.
